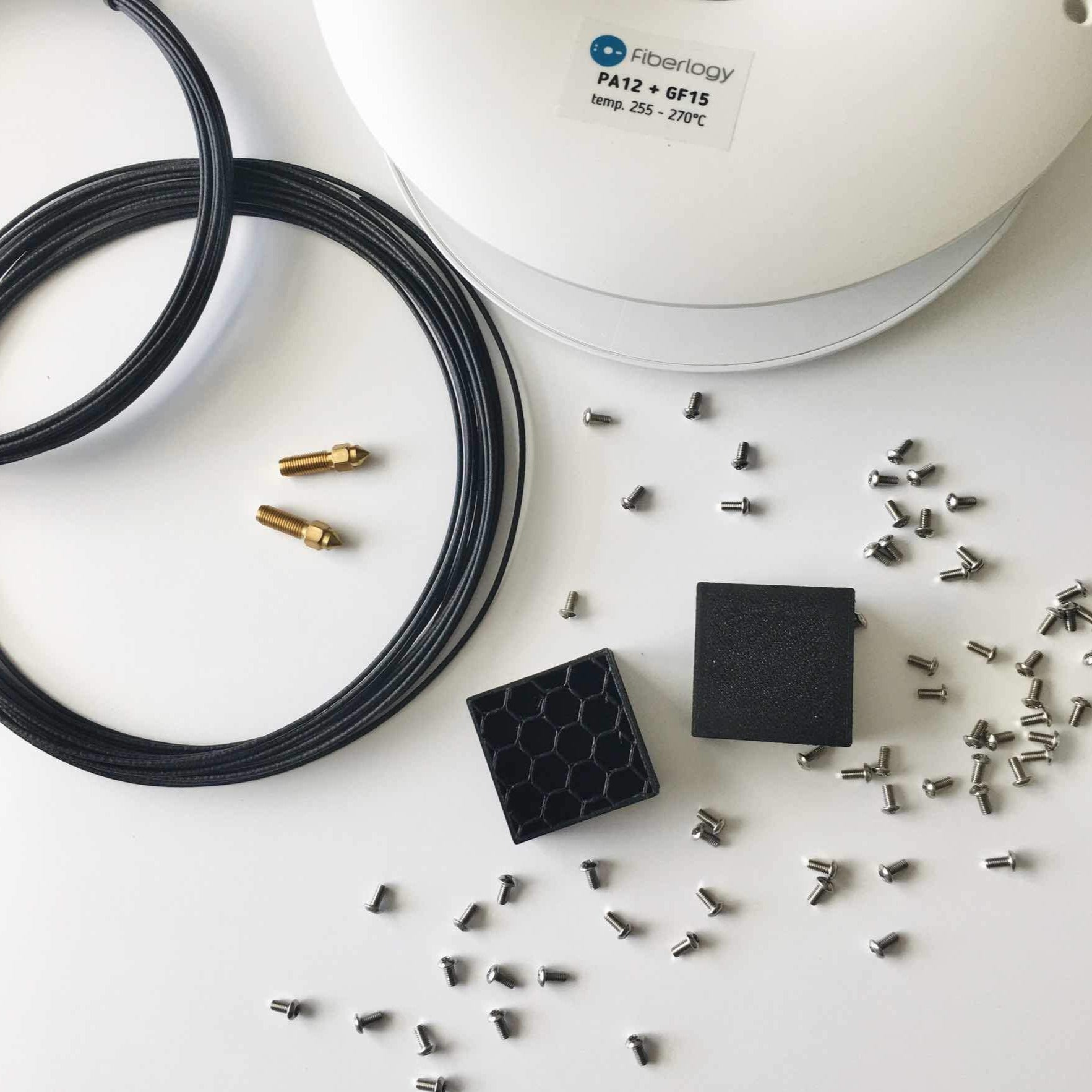

Fiberlogy NYLON PA12+GF15 Filament - Sample Size 17-25g, (Sample) Durability and Resistance, Glass Filled Filament 1.75mm

Fiberlogy NYLON PA12+GF15 Filament - Sample Size 17-25g, (Sample) Durability and Resistance, Glass Filled Filament 1.75mm

Regular price $5.00 USD
Regular price $0.00 USD Sale price $5.00 USD
Sale Sold out

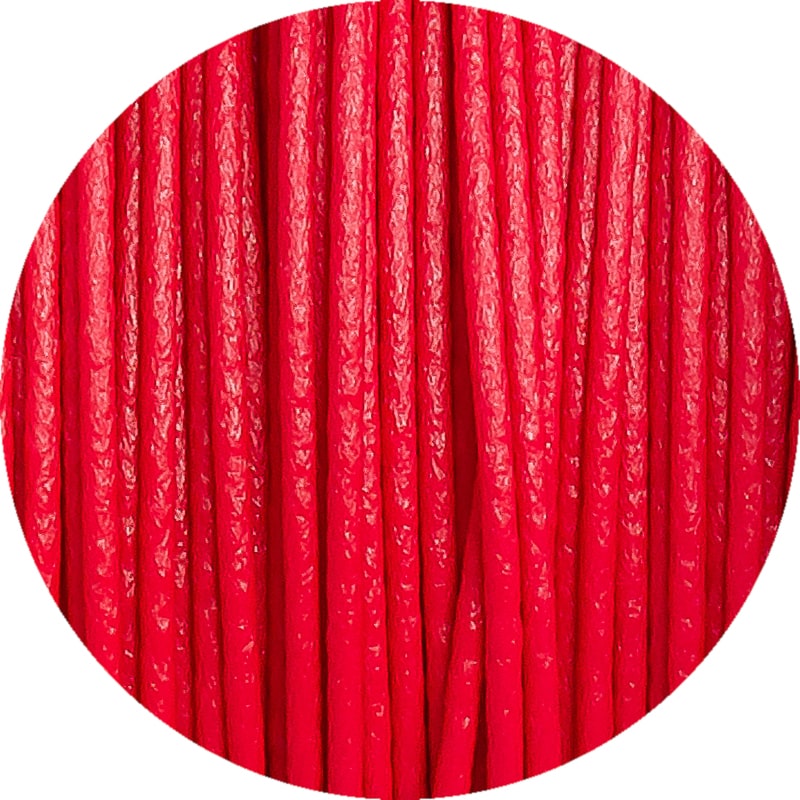

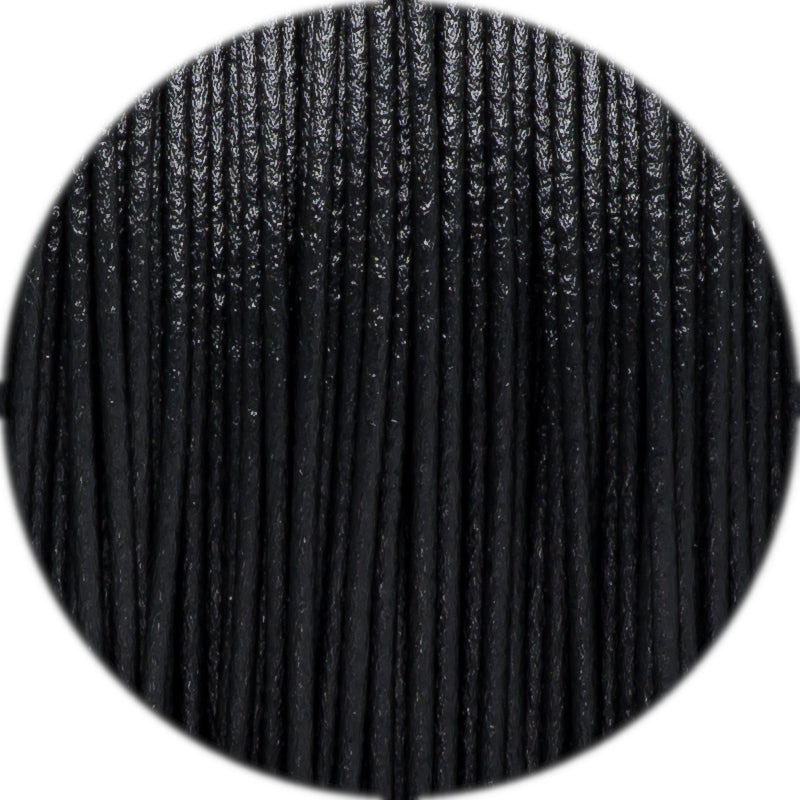

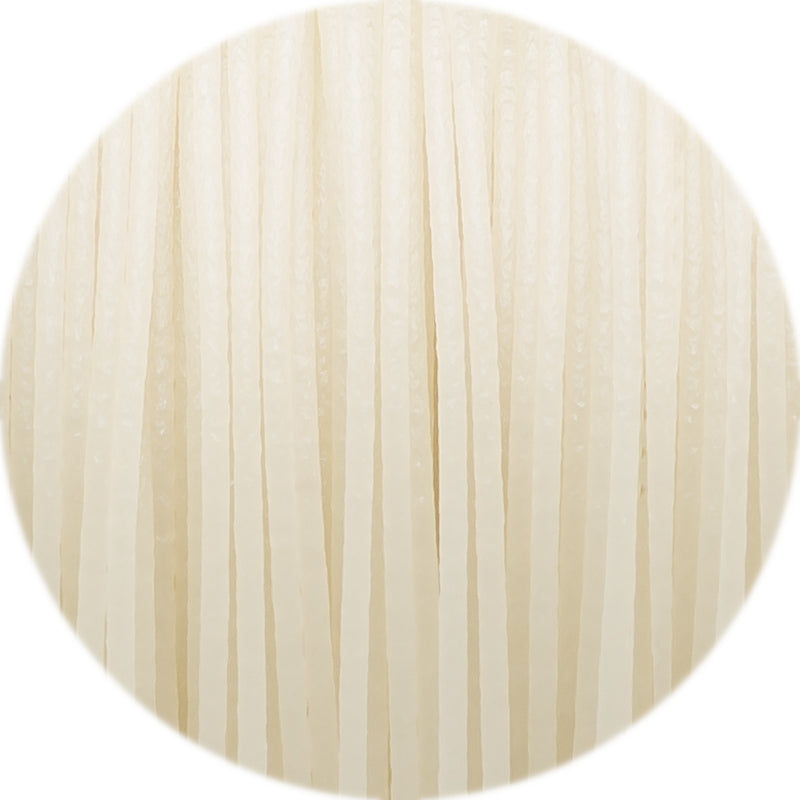

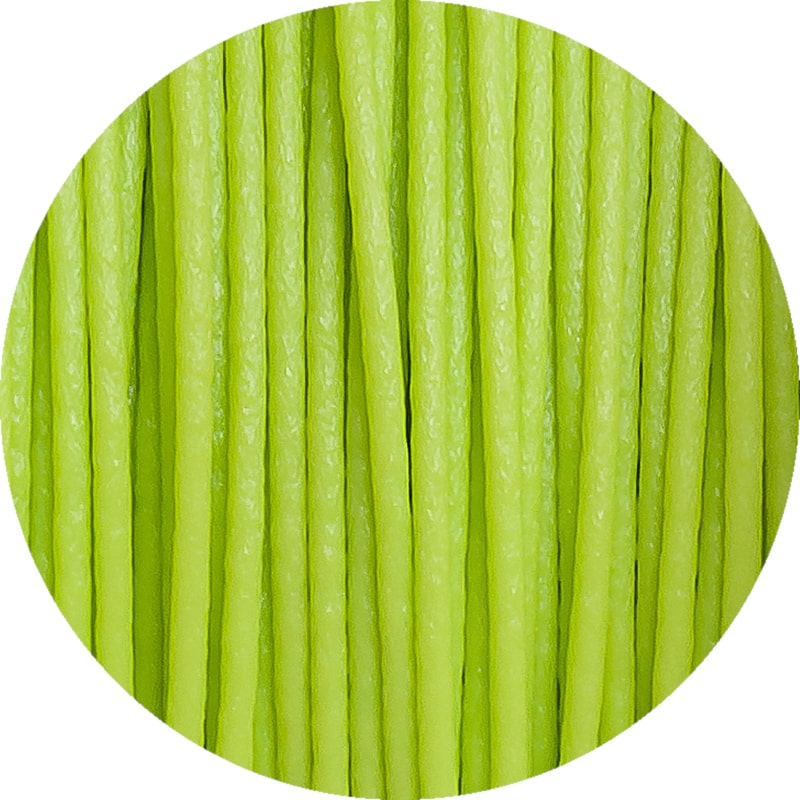

Color

Sample Size:

  • Samples are a great option for trying out a new material, color or when comparing different testing parameters of similar options.
  • Samples vary in weight as different materials have different densities and generally range from 15-35 grams.

Unique Features at a Glance:

  • Prints created with Nylon PA12+GF15 can achieve the perfect combination of high durability, impact resistance, dimensional stability and resistance to high temperatures (up to 170°C) and chemicals
  • Engineering excellence achievable even from home printer setups
  • Resistance to material fatigue
  • The possibility to print on an open printer
  • Engineered and created in Poland using highly specialized machinery and carefully selected raw materials



DURABILITY AND RESISTANCE

PA12 + GF15 is another material offered by Fiberlogy, which is a derivative of Nylon PA12. It was created by reinforcing it with glass fiber (GF), which constitutes 15% of the product. This made it possible to significantly increase the durability, stiffness, and thermal and chemical resistance compared to pure Nylon. PA12 + GF15 has a stiffness of 3.6 GPa and a temperature resistance of up to 170°C.

This filament offers greater flexibility, making it ideal for applications operating under variable loads and exposed to impacts, unlike Nylon with an addition of glass fiber, available as Fiberlogy PA12 + CF5 and PA12 + CF15, .

The very low shrinkage ensures high dimensional stability. This combined with high durability makes engineering excellence achievable at home. This filament does not require a heated chamber. However, due to the high abrasiveness, steel or ruby nozzles should be used for printing in order to prevent excessive wear.

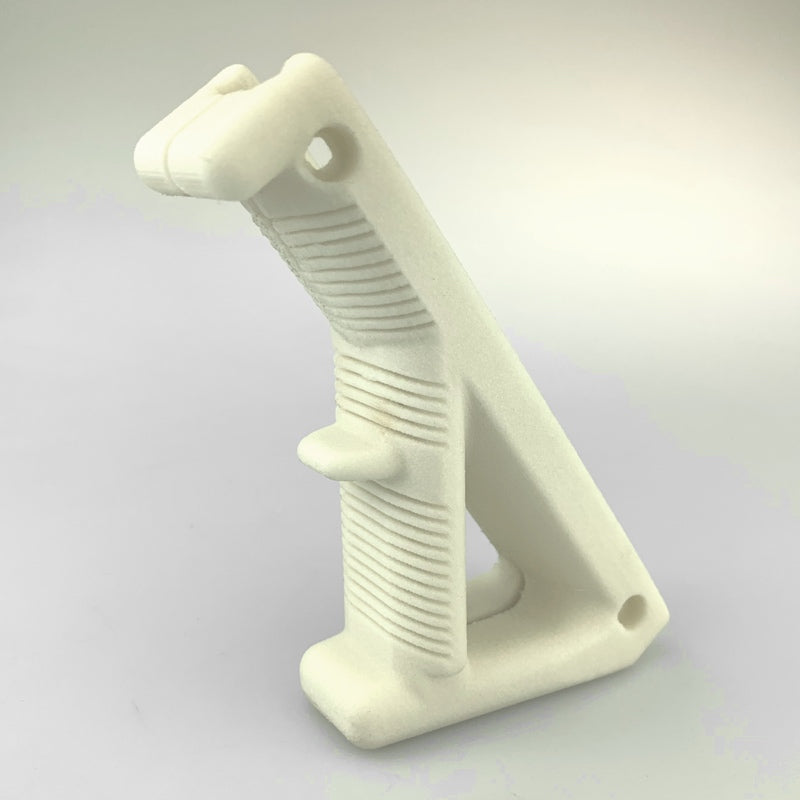

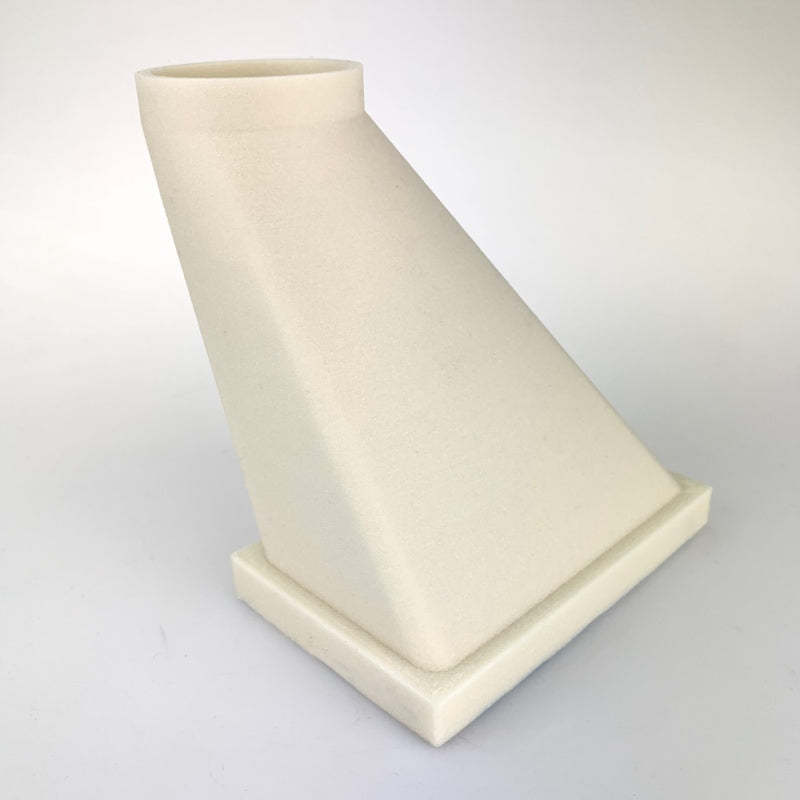

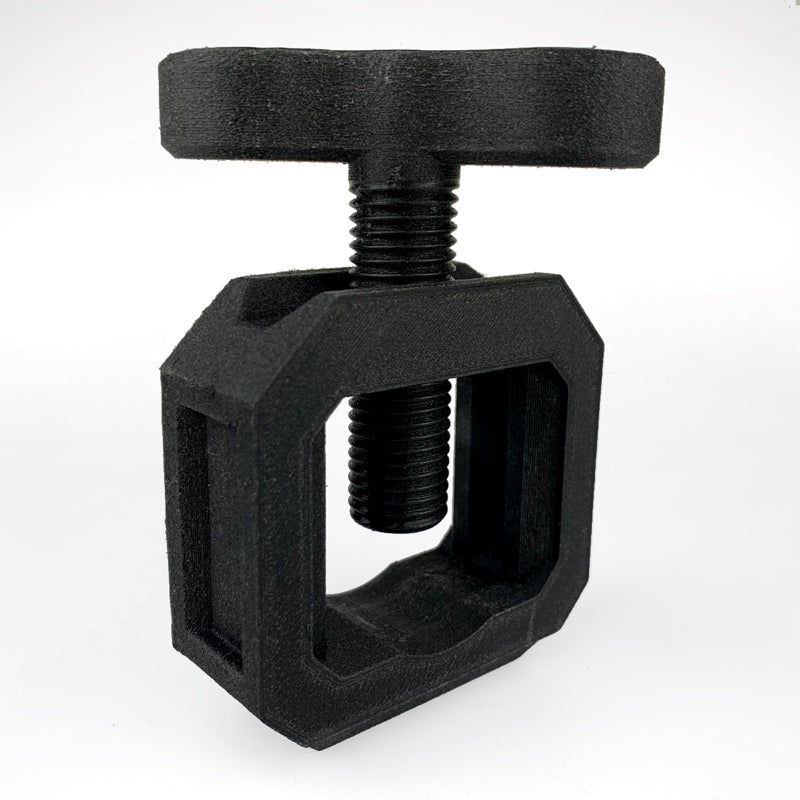

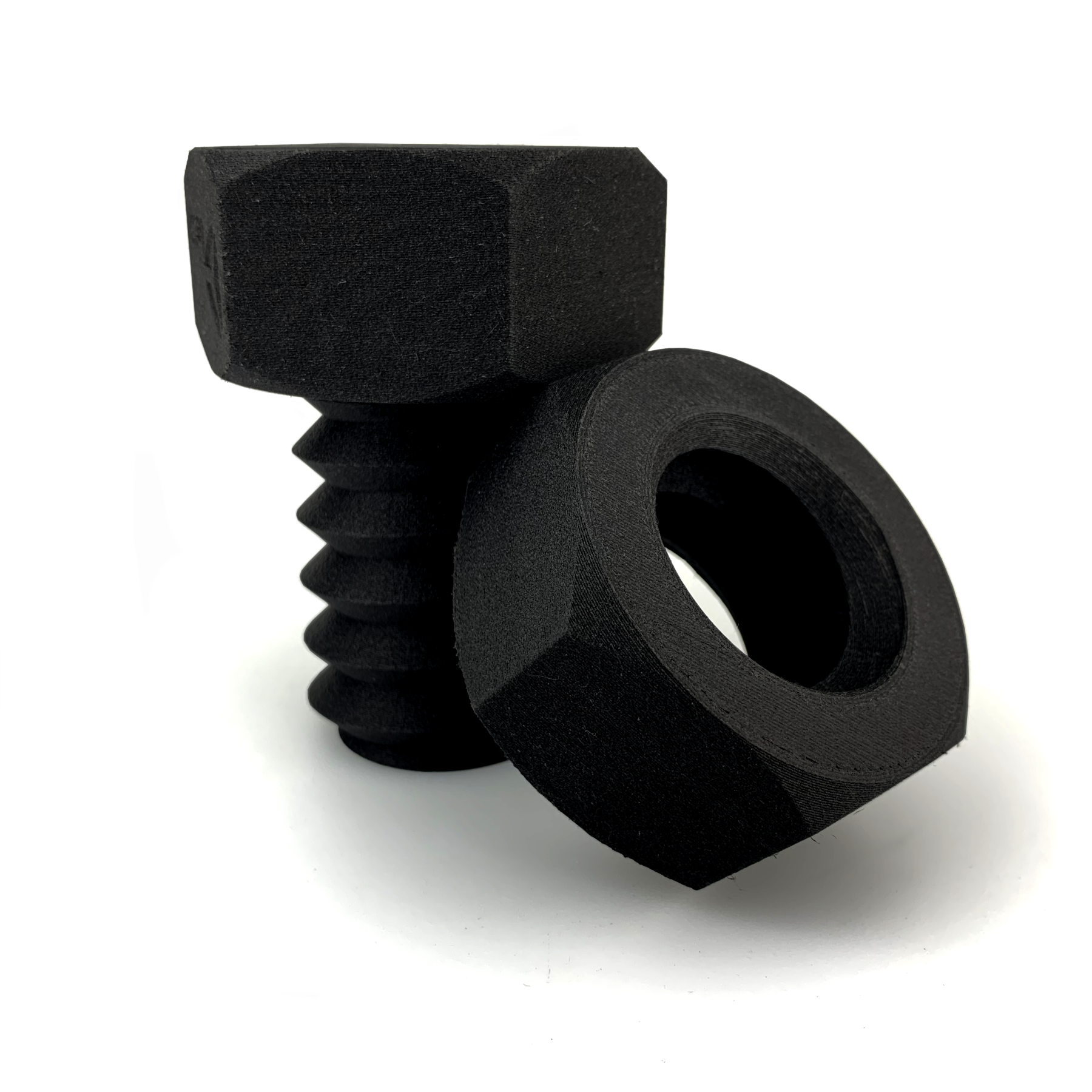

Applications in 3D Printing:

  • AUTOMOTIVE: elements in the engine compartment, housing of vehicle components, air intakes, fluid fillers
  • INDUSTRY: spare parts, short series, utility models
  • MEDICINE: prostheses, medical equipment
  • SPORT: accessories, pads, airsoft elements

How to Print:

The following parameters are only suggested print settings for this material. To ensure the best print quality, it is necessary to choose the appropriate settings for a specific printer and printing conditions.

Printing temperature: 255 – 270°C

Bed temperature: 90-110°C

Closed Chamber: required

Fan: 0-25%

Flowrate: 90-100%

Printing Speed: 35-60mm/s

Surface: PEI, glass, masking tape

Retraction (direct): 2-3mm

Retraction (bowden): 4-6mm

Retraction Speed: 20-45mm/s

Important Notes: The material is highly abrasive. We recommend the use of hardened steel or ruby nozzles.  Wear gloves (the possibility of micro damages on the skin). Use a dust mask and protective glasses when processing.
